Description

Product Information

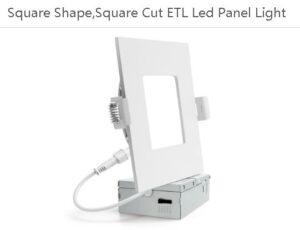

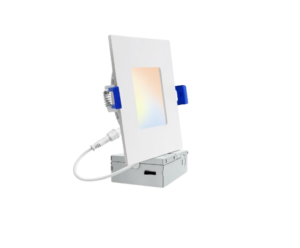

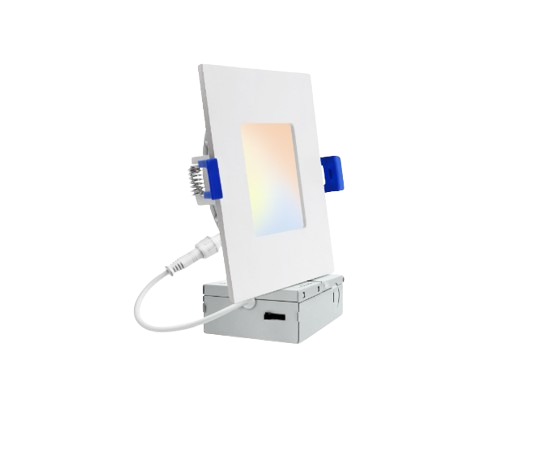

- 4 Inch Square Super Thin IC Rated Recessed
- SlimPro LED Panel Light
- AC 120V, 10W, 8501m, CRI>80
- TRIAC Dimming
- 3CCT Selectable: 3000K, 4000K, 5700K
- Beam Angle: 110 Degrees
- Finish: White
Body:
Durable airtight aluminum body with etched white PMMA diffuser lens for low glare.
LED Characteristics
This general application light fixture features a 10/12 watt LED module that maintains uniform intensity, producing up to 996 lumens, with a typical CRI of 80/90.
Available in 3000K, 4000K, or 5700K colour temperature.
Dimming:
100%–5% dimming capability. This fixture is compatible with industry-standard TRIAC/ELV dimmers (contact factory for a list of compatible dimmers).
Beam Spread
The fixture lens provides a 110° beam spread.
Mounting
Includes two spring-loaded clips to attach to any ceiling material.
LED Driver
Extruded aluminum hardwire box with 300mA dimmable Class II electronic LED driver with AC120V/220V input.
Includes an 18″ plenum-rated FT6 wire with DC 2.1 connector from driver to fixture.
Quick Connect Push-in Terminals
Three “Quick Connect” push-in terminals for fast and easy wiring.
Operating Temperature
-20°C to 40°C (-4°F to 104°F)
Environment:
Suitable for wet locations
Suitable for insulated ceiling applications
Description
The super thin LED panel light is designed for recessed retrofit applications as well.
It is a high-performance, easy-to-install residential and commercial-grade downlight solution that offers super high output, energy efficiency, and a streamlined design. Suitable for wet locations.
